Laser Power Test

CDRH Laser Devices Class IIIa Power Test

Complied FDA Performance Standards for Laser Products

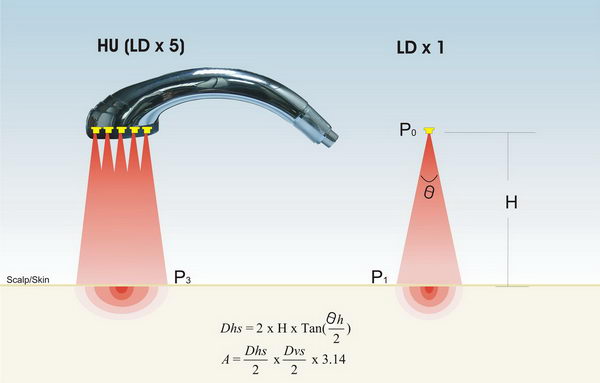

The CDRH (Center for Devices and Radiological Health)- 21CFR1040.10 procedure for measuring laser output is the energy detectable through a circular aperture stop having a diameter of 7 mm at a distance of 20 cm from the probe tip or laser diodes.

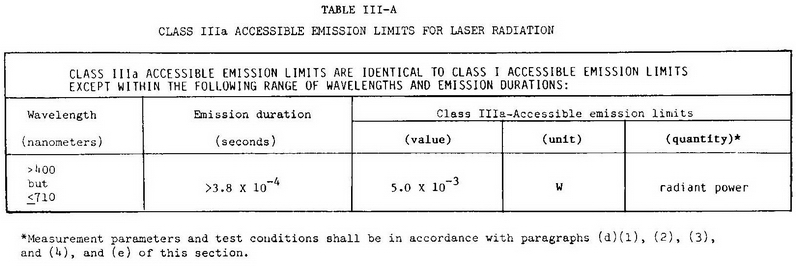

Konftec's visible red laser diode (typical wavelength of 660nm laser diode) equipped in the Aculas-HB-850A625 and Klas series is with the specification of beam divergence 9° (Parallel Angle) x 19° (Perpendicular Angle). Because of the divergence of the beam, the distance and the aperture used, the energy detectable falls within the Class IIIa (wavelength 400nm ~ 710nm visible laser with radiation power <5 mW) laser product standard.

The typical average power for all 50mW and some 100mW laser devices shown on the warning logotype in our brochures and user's guide is <5 mW/cm² as measured in accordance with the procedure described above.

Aculas-HB-850A625
Description	NCDRH Test Distance	Parallel Angle	Perpendicular Angle	Horizontal Length	Vertical Length	Radiation Area	Laser End Output Power	Max. Power (Sum of 5 Lasers)	Test Output Power
Symbol	H	θ//	θ⊥	Dhs	Dvs	A	P0	P2	P3
Unit	(cm)	(°)	(°)	(cm)	(cm)	(cm²)	(mW)	(mW)	(mW/cm²)
HB-850A625	20	9	19	3.15	6.69	16.55	20	80	4.83

Klas Series: Klas-A, Klas-D, Klas-E and Klas-S
Description	NCDRH Test Distance	Parallel Angle	Perpendicular Angle	Horizontal Length	Vertical Length	Radiation Area	Laser Diode Output Power	Laser End Output Power	Test Output Power
Symbol	H	θ//	θ⊥	Dhs	Dvs	A	Pdiode	P0	P1
Unit	(cm)	(°)	(°)	(cm)	(cm)	(cm²)	(mW)	(mW)	(mW/cm²)
Klas-A50	20	9	19	3.15	6.69	16.55	50	47.5	2.87
Klas-D50							50	40	2.42
Klas-D61							100	80	4.83
Klas-E50							50	40	2.42
Klas-E61							100	80	4.83
Klas-S50							50	30	1.81
Klas-S61							100	60	3.63
