Click to Enlarge Klas®-P6

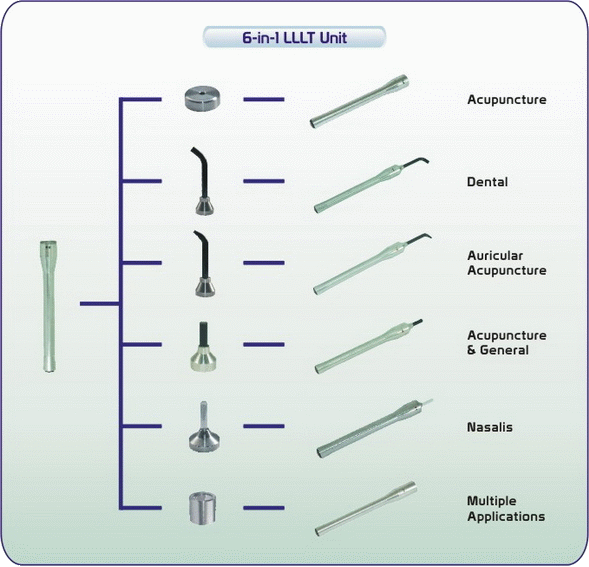

6-in-1 LLLT Unit
Infrared Laser 808nm/250 ~ 460mW


Klas-P6 is supplied with interchangeable optic caps and fiber rods, which provide the selections of laser beam spot sizes from 0.13 cm² to 3 cm² to meet laser therapy applications.

Klas-P6 is specially designed for the professional practitioners with the compact structure and high infrared laser power to apply
Laser acupuncture
Auricular laser acupuncture
Dental applications
Nasalis applications
Other multiple applications


  • Applications
  • Features
  • Specifications
  • Accessories
  • Model No.
  • Treatment Time
Effective

Constant laser intensity is maintained by:

Innovative optics design leads to the maximum output laser power.
Advanced integrated circuit designed by Konftec to maintain the specific power output even the batteries are in low capacity.
Safe   Konftec's integrated circuit design with full protections:
EDS (Electrostatic Discharge)
over-temperature
under-voltage
soft-start
short-term reverse battery connection
Convenient   Various fiber rods with outstanding autoclavability
The excellent transmission characteristics of fiber rod remains unaffected even after being autoclaved several thousand times.
Ability of standing up to repeated machine washing.
Easy to Use   Vandal resistant pushbutton switch for the simplest operation, can easily be used by practitioner.
Powered by three alkaline AA batteries which provide Klas-P62 approximately 14 hours continuous operation. The batteries can also be purchased from the local stores.
Operation Environment  0 ~ 50 °C (32 ~ 122 °F); 10 ~ 95%RH (Non-condensing)
Power Supply  3 x AA or Rechargeable Battery 3 x AA Btaaery
Laser Material  Semiconductor Laser Diode AlGaAs
Laser Wavelength
… Output Power 		 808nm…250 ~ 460mW
Note:
The measured output power data shown in the delivered test report indicates the power from the laser diode.
Housing Material  Stainless Steel
Switch  Vandal Resistant Pushbutton
Enclosure Protection  IP54 (NEMA 4)
Protection against dust
Protection against water spray
Dimensions  Max. 210(L) x Ø26 mm; 8.4(L) x Ø1 in.
Weight  Max. 250 g (8.8 ounce), Batteries not included
 Verification  EMC Directive 93/42/EEC
(Operation Environment: Medical Electrical Equipment)
Standard Applied: IEC 60601-1 and EC 60601-1-2
Medical Device Certificate  ISO 13485: 2003
Laser Optic Cap & Fiber Rod
Type of Cap Cap-A Cap-C Cap-D Cap-E Cap-N Cap-S
Model No. WO-420 WO-425 WO-422 WO-423 WO-421 WO-424
Reference
Laser Beam Spot Size 0.13 cm² 0.5 cm² 0.5 cm² 0.13 cm² End Dispersion 3 cm²
Applications Acupuncture
& Single Point		 Acupuncture
& General		 Dental Auricular
Acupuncture		 Nasalis Multiple
Aluminum Case WC-121
Dimensions 254(L) x 164(W) x 50(H) mm
10(L) x 6.6(W) x 2(H) in.		 Click to Enlarge
Weight 0.4 Kg (0.9 Lb)
Handheld Power Meter LaserCheck
Wavelength Range 400 ~ 1064 nm Click to Enlarge
Displayed Power Range 9.99 µW to 999 mW; Auto-ranging
Accuracy ±5%
Measurement Display 3-digit LCD with power unit indicator
Sensor Aperture Size 8 mm
Model No. Output Power Battery Operation Time
(Hours)		 Laser
Classification
w/o Fiber Rod
 w/ Fiber Rod
WF-425
Klas-P62 250mW 200mW 14 Class IIIb
Klas-P64 460mW 360mW 8 Class IIIb
 †  Laser Effective Area = Laser Beam Spot Size…0.13 cm² ~ 3 cm²
  Treatment Time (second) = Dose (J/cm3) x 1000 x Laser Beam Spot Size (cm²)
—————————————————————————
End Power (mW) x Energy Loss Factor (/cm)

Treatment Time Calculation Table - Klas-P6
