emLas®-520 Download PDF File
Replace   Aculas-HB-530
Cordless 2-channel LLLT System
(Auricular Application)
Performance & Safety
Innovative eartip laser
Two laser beams emitted simultaneously
Dispersion laser beam is safer than any auricular laser device in the market
Cordless operation
Medical Laser Power
The real laser power output (50 ~ 90 mW) per channel
CE Medical Verification
ISO 13485 Quality System Certificate
Reliability
Equipped with the industrial grade laser diodes
Temp. rating 60°C
MTBF (Mean Time Between Failures)
> 5,000 Hours
Efficacy -- The innovative eartip lasers emit to the right position.


Aculas-HB-530 is developed to apply Low Level Laser Treatment (LLLT) in auricular regions for the achievement of "Laser Biostimulation" effect.

Aculas-HB-530 is patented and made using the combination of modern laser diode technology, innovative optics design and computerized digital control.

Aculas-HB-530 is clinically proven for treatments as a mono therapy or as a complementary treatment along with other therapies to treat:
Tinnitus
Meniere's disease
Hearing loss

Click to Enlarge
Click to Enlarge
Effective   Specific laser power for the hearing diseases:
Specially designed laser beam evenly irradiates the inner ear.
Advanced integrated circuit designed by Konftec with automatic power control(APC) to maintain the specific power output.
Industrial grade laser diodes with temperature rating of 60 °C and MTBF (Mean Time Between Failures) > 5,000 hours.
Safe   Konftec's integrated circuit design for all laser modules provide full protection of:
EDS (Electrostatic Discharge)
over-temperature
soft-start

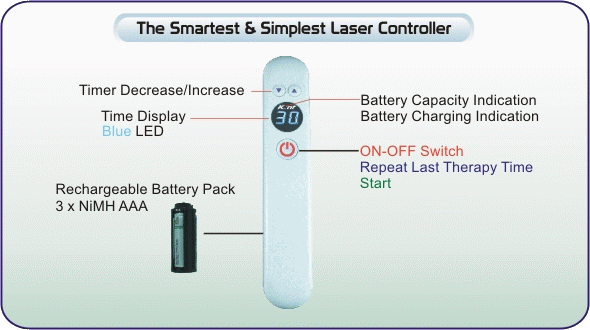

Easy to Use   Cordless operation powered by battery pack for hand free and mobile treatment.
Powered by three rechargeable NiMH AAA batteries, which can also be purchased from the local stores.
Dynamic blue LED display for clear reading.
To set the last therapy process with " Start " button.

Operation Environment 0 ~ 50 °C (32 ~ 122 °F); 10 ~ 95%RH (Non-condensing)
Time Setting 1 ~ 60 Minutes (Min. Setting Segment 1 Minute)
Beeper Alert Setting and Stop
Power Supply 3 x Rechargeable NiMH Battery AAA
Controller Enclosure Color White or Black
Battery Charger / AC Power Supply Unit
Power Input Voltage 90V AC ~ 264V AC
Power Input Frequency 47Hz ~ 63Hz
Power Input Current Max. 0.5A (115V AC), 0.25A (230V AC)
Power Supply Protection Short Circuit and Overload; Auto Recovery Mode
Verification EMC Directive 93/42/EEC
(Operation Environment: Medical Electrical Equipment)
Standard Applied: IEC 60601-1 and EC 60601-1-2
Shipping Dimensions 23(L) x 14(W) x 7.5(H) cm; 9(L) x 5.5(W) x 3(H) in
Shipping Weight 1 Kg (2.2 Lbs)
Auricular Laser Module Click to Enlarge



Quantity of Laser Module 2
Laser Material Semiconductor Laser Diode
660nm… AlGaInP
780nm… AlGaAs
Wavelength
& Output Power
660nm… 50mW
780nm… 90mW
Insert Eartip Material Rubber; Replaceable
Insert Eartip Size Selectable Diameter 4 ~ 16mm
LE-2
Click to Enlarge
Battery Charger / AC Power Supply Unit
Power Input Voltage 90V AC ~ 264V AC
Power Input Frequency 47Hz ~ 63Hz
Power Input Current Max. 0.5A (115V AC), 0.25A (230V AC)
Power Supply Protection Short Circuit and Overload; Auto Recovery Mode
WP-191
Click to Enlarge
