	*Aculas®-HB-150E*
	Multi-channel Digital LLLT System
	(Auricular Application)

Performance & Safety
	Innovative eartip laser
	Laser beams emitted simultaneously by independent channels
	Safer than any auricular laser device in the market

Medical Laser Power
	The real laser power output (80 ~ 160 mW) per channel
	CE Medical Verification
	GMP Quality Certification

Reliability
	Equipped with the industrial grade laser diodes
	Temp. rating: > 50°C
	MTBF (Mean Time Between Failures) > 5,000 Hours

Efficacy -- The innovative eartip lasers emit to the right position.

Aculas-HB-150E is developed to apply Low Level Laser Treatment (LLLT) in auricular regions for the achievement of "Laser Biostimulation" effect.

Aculas-HB-150E is patented and made using the combination of modern laser diode technology, innovative optics design and computerized digital control.

Aculas-HB-150E is clinically proven for treatments as a mono therapy or as a complementary treatment along with other therapies to treat:
Tinnitus
Meniere's disease
Hearing loss

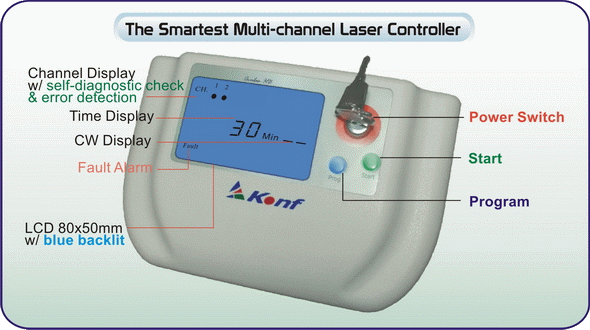

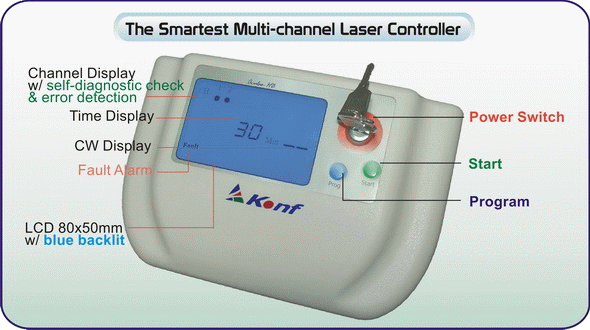

Five lasers irradiate simultaneously with independent channel control to get accurate dosage, the controllable dosage can be treated to achieve the best therapy effectiveness. Microprocessor-based control, with the functions of self-diagnostic check and error detection, can automatically detect faulty alarm channel(s). User-friendly single function key to set the therapy process. Dynamic large size (80x50 mm) LCD with blue backlit display for clear reading. Musical auto time off on completion of therapy cycle. Patented laser modules directly plug into the auricular regions without the risk of laser leakage for complete protection.
Treating Positions (Click Picture to Enlarge)
Point-1: LE-1 Point-2, Point-3 & Point-4: LM-1 Point-5 (back of the ear): LM-1


Operation Environment	0 ~ 50 °C (32 ~ 122 °F); 10 ~ 95%RH (Non-condensing)
Storage Environment	-20 ~ 85 °C (4 ~ 185° F); 10 ~ 95%RH (Non-condensing)
No. of Channels	5
Time Setting	30 Minutes (Auto Setting)
Frequency Setting	Continuous (Auto Setting)
Music Alert	Stop and Fault
Power Input Voltage	90V AC ~ 264V AC
Power Input Frequency	47Hz ~ 63Hz
Power Input Current	Max. 1.0A (115V AC), 0.5A (230V AC)
Power Supply Protection	Short Circuit and Overload; Auto Recovery Mode
Verification	EMC Directive 93/42/EEC (Operation Environment: Medical Electrical Equipment) Standard Applied: IEC 60601-1 and EC 60601-1-2
Enclosure Material	ABS 94HB (Flame Class Rating UL 94HB)
Medical Device Certificate	GMP (Good Manufacturing Practice) ISO 13485
Shipping Dimensions	39(L) x 13(W) x 30(H) cm; 15.4(L) x 5.1(W) x 11.8(H) in
Shipping Weight	3.3 Kg (7.3 Lbs)

Tapping Laser Module (LM)
Quantity of Laser Module	4
Laser Material	Semiconductor Laser Diode 780nm…AlGaAs 808nm…AlGaAs
Wavelength & Output Power	780nm…80mW x 4 808nm…80mW x 4
Contact Plate Material	Surgical Stainless Steel
Option	Limited Selectable Laser Diode Wavelength & Output Power

4 x LM-1

Double Sided Tape
Tape Size	Width - 24mm, Length - 13.72 m (capable of 500~600 tapes for laser module)
Tape Class	Medical Grade
Transparency	> 92% ( for Red & IR Range Lasers )

WA-421

Tapping
Instruction

Auricular Laser Module
Quantity of Laser Module	1
Laser Material	Semiconductor Laser Diode 780nm... AlGaAs 808nm... AlGaAs
Wavelength & Output Power	780nm: 90mW 808nm: 160mW
Insert Eartip Material	Rubber; Replaceable

LE-1

Aluminum Case		WC-122
Dimensions	375(L) x 285(W) x 115(H) mm 14.8(L) x 11.2(W) x 4.6(H) in.
Weight	1.43 Kg (3.15 Lb)

Model No. Aculas-	Laser Module			Total Output Power

	780nm@80mW	780nm@90mW	808nm@160mW
HB-150E785	4	1		410 mW
HB-150E885	4		1	480 mW

Therapy Time	Frequency	Session(Times)
Minutes	Time/Day	Average	Max.
30	1	10	15

Remarks:
	There is no laser leakage if the laser modules are properly applied. It is not necessary to wear laser safety goggles.

	Ten treatments are usually administered on either 10 consecutive days, or over a two week period. It takes 1~3 months to see the effectiveness (after the treatment, it need time for your body to repair yourself).

	HB-150E is applying one ear tips plus four tapping laser modules, and the laser beam is designed to be dispersion type, with the beam divergence angles in parallel and perpendicular, you can just put it on and move slightly- ideally applied for home therapy.

	To follow the recommended treating positions of the tapping laser modules is the fact of the effectiveness.
